SSCF Series Brass Plated Nickel Fixed Fitting
Category: Metal Cable Gland
Product details

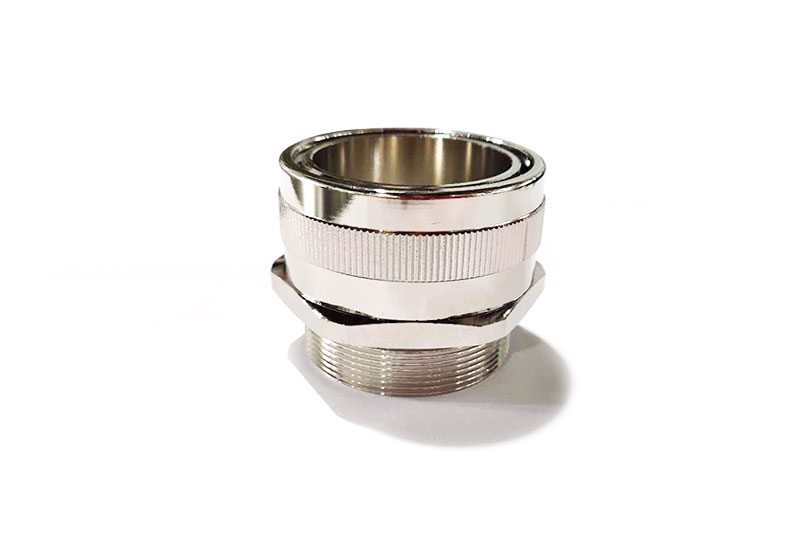

SSCF Series-Brass Plated Nickel fixed fitting
Product Overview
Material: brass nickel plated
Features: One end is connected to a metal hose, and the other end is connected to a screw box or equipment. High temperature resistance, corrosion resistance, strong impact resistance, etc.
Technical Parameter
SSCF-M Metric Thread
| Artice no. | Thread | d(mm) | Wrench size(mm) | Thread Length | Total Length(mm) |
| SS-CF10 | M12*1.5 | ￠8 | 14 | 8 | 26 |
| SS-CF12 | M16*1.5 | ￠12 | 17 | 10 | 28.5 |
| SS-CF16 | M20*1.5 | ￠15 | 21 | 10 | 30 |
| SS-CF20 | M20*1.5 | ￠20 | 24 | 10 | 30 |
| SS-CF25 | M25*1.5 | ￠25 | 28 | 10 | 32.5 |
| SS-CF32 | M32*1.5 | ￠32 | 38 | 11 | 40 |
| SS-CF40 | M40*1.5 | ￠38 | 48 | 12 | 40 |
| SS-CF50 | M50*1.5 | ￠51 | 58 | 15 | 46.5 |

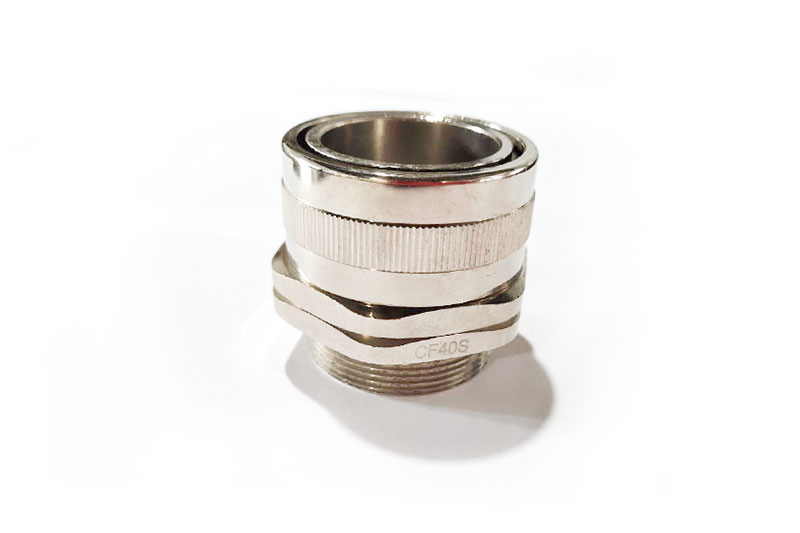

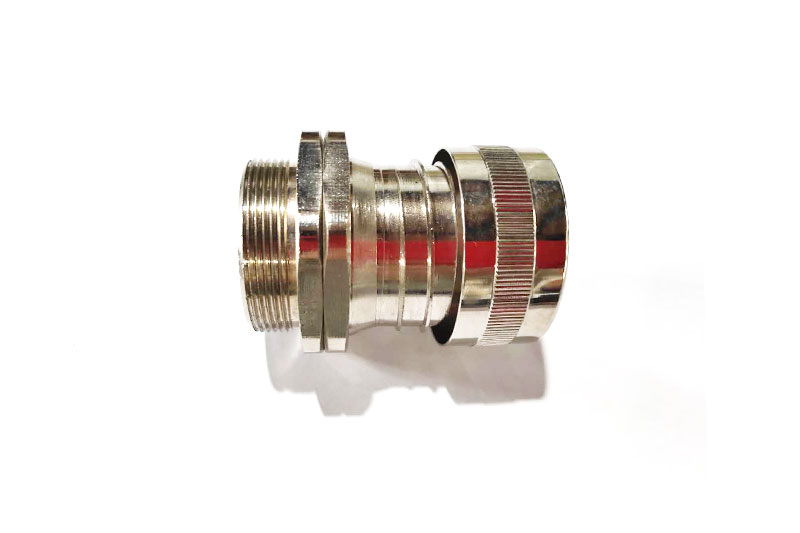

SSCFS Series-Brass Plated Nickel Swivel fitting
Product Overview
Material: brass nickel plated
Features: One end is connected to a metal hose, and the other end is connected to a box or equipment with a thread. The joint can be flexibly rotated. High temperature resistance, corrosion resistance, strong impact resistance, etc.
Technical Parameter
SSCFS-M Metric Thread
| Artice no. | Thread | d(mm) | Wrench size(mm) | Thread Length | Total Length(mm) |
| SS-CF10s | M12*1.5 | ￠8 | 14 | 8 | 28.5 |
| SS-CF12s | M16*1.5 | ￠12 | 17 | 10 | 32.5 |
| SS-CF16s | M20*1.5 | ￠15 | 21 | 10 | 33.5 |
| SS-CF20s | M20*1.5 | ￠20 | 24 | 10 | 34 |
| SS-CF25s | M25*1.5 | ￠25 | 28 | 10 | 37 |
| SS-CF32s | M32*1.5 | ￠32 | 38 | 11 | 40 |
| SS-CF40s | M40*1.5 | ￠38 | 48 | 12 | 44.5 |
| SS-CF50s | M50*1.5 | ￠51 | 58 | 15 | 50.5 |
